Head
Tuning machines: Gold-plated, die-cast precision tuners.
Neck
three piece of laminated maple with two walnut stripes and a multi-layered center section of ash, walnut and maple.. Neck Through Body / Conductor. 24 frets. Nut made of Brass. Laminated neck. The fingerboard is made of Rosewood.
Body
Multi-layered ash, walnut and maple with two walnut stringers..
Electronics
Master volume/Active treble & bass control with center detent position/EQ volume. Coil tap/phase/EQ volume/Pups selector switches. Configuration: HH. 2 x Vantage custom-engineered split-coil humbucking bass pups. There is a pick-up selector. This model is tap/coil capable. Phase switching can be achieved on this model. This model has active electronics.
Hardware
Brass controls with groove grip. This guitar has a one-piece bridge/stop. Bridge: Brass adjustable combination bridge/tailpiece.
Notes
Matte oak finish.
:

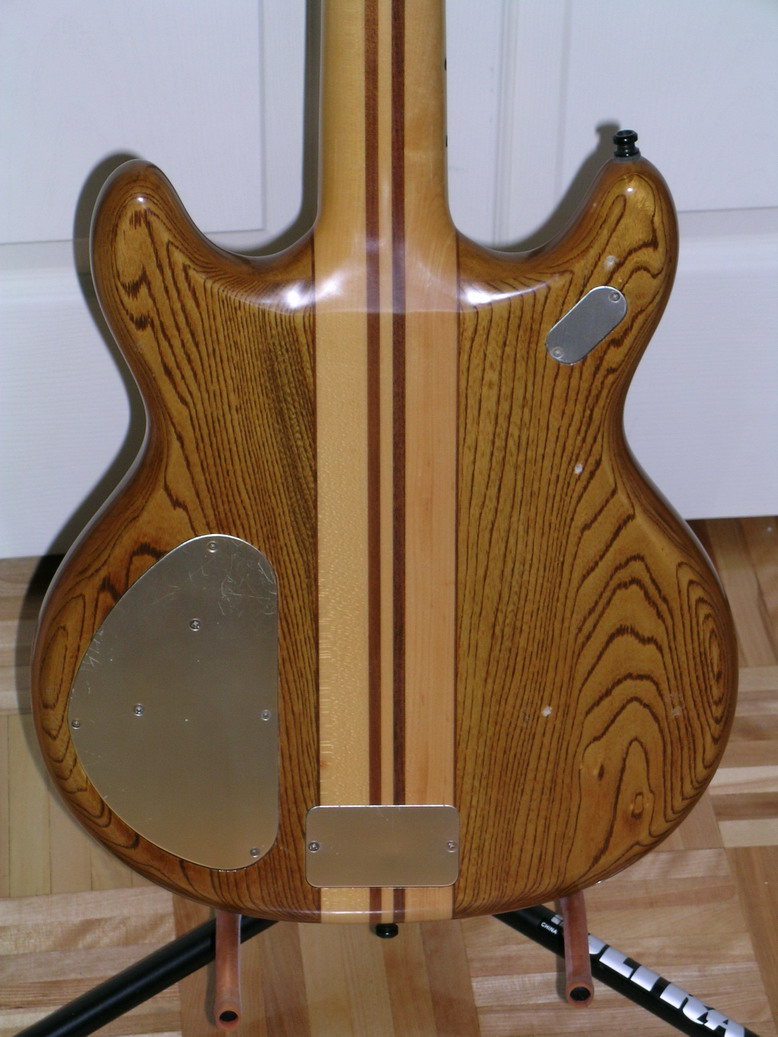

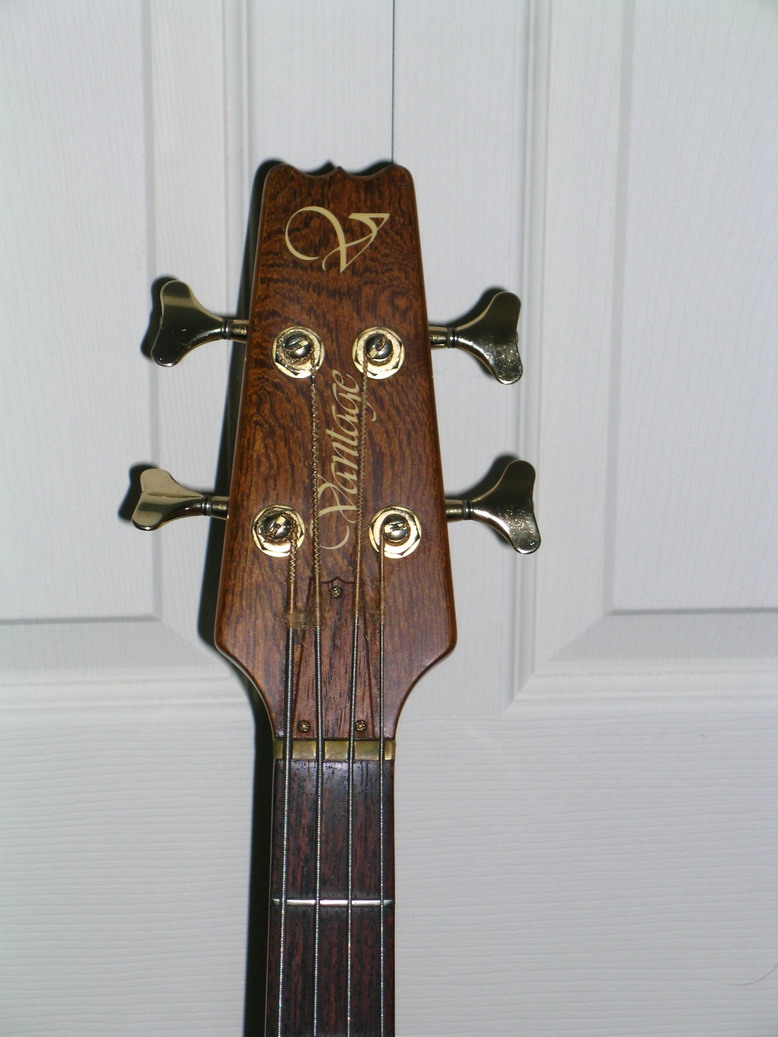

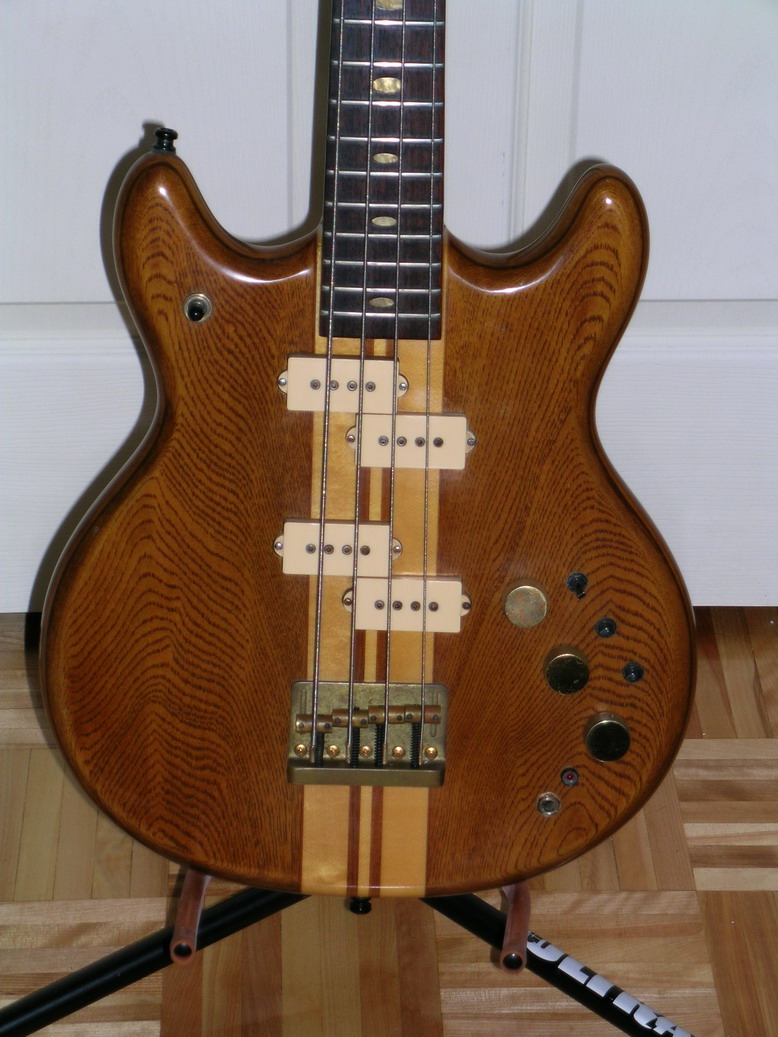

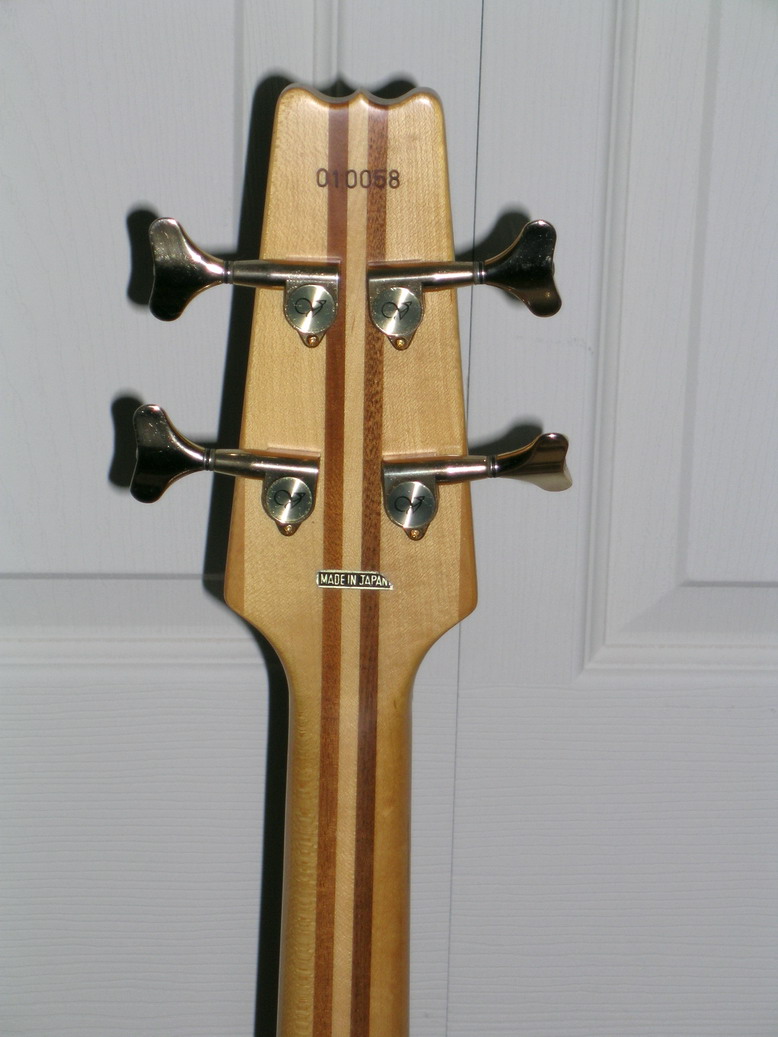

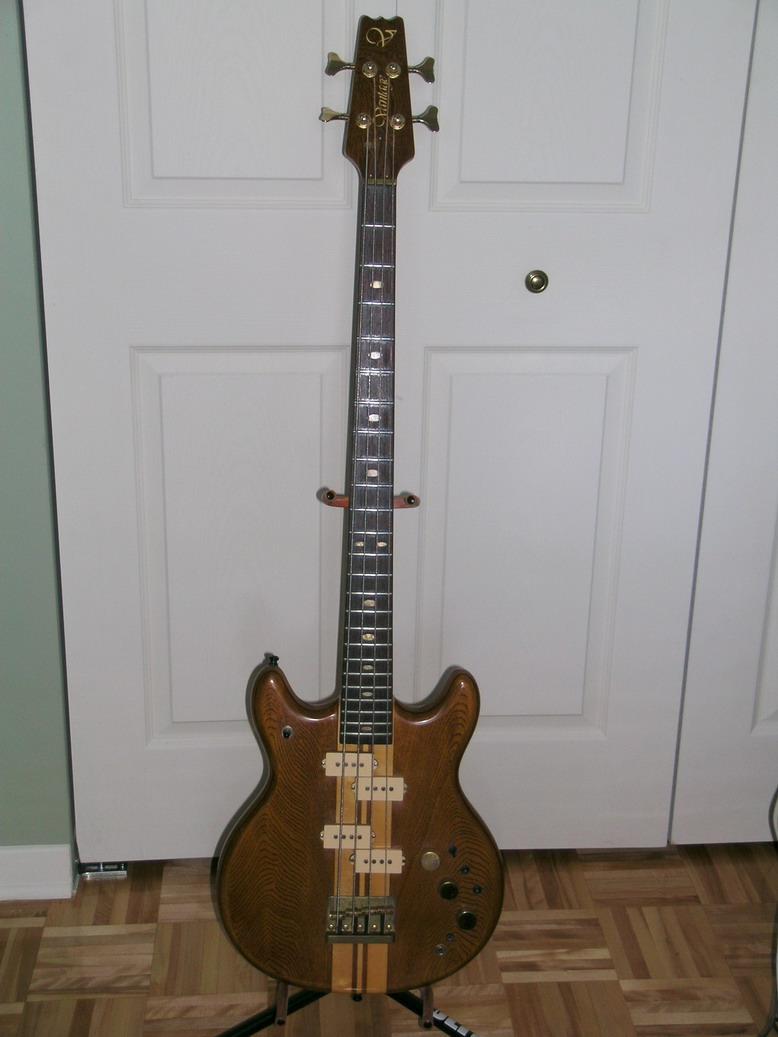

Picture below courtesy Frenchy
:

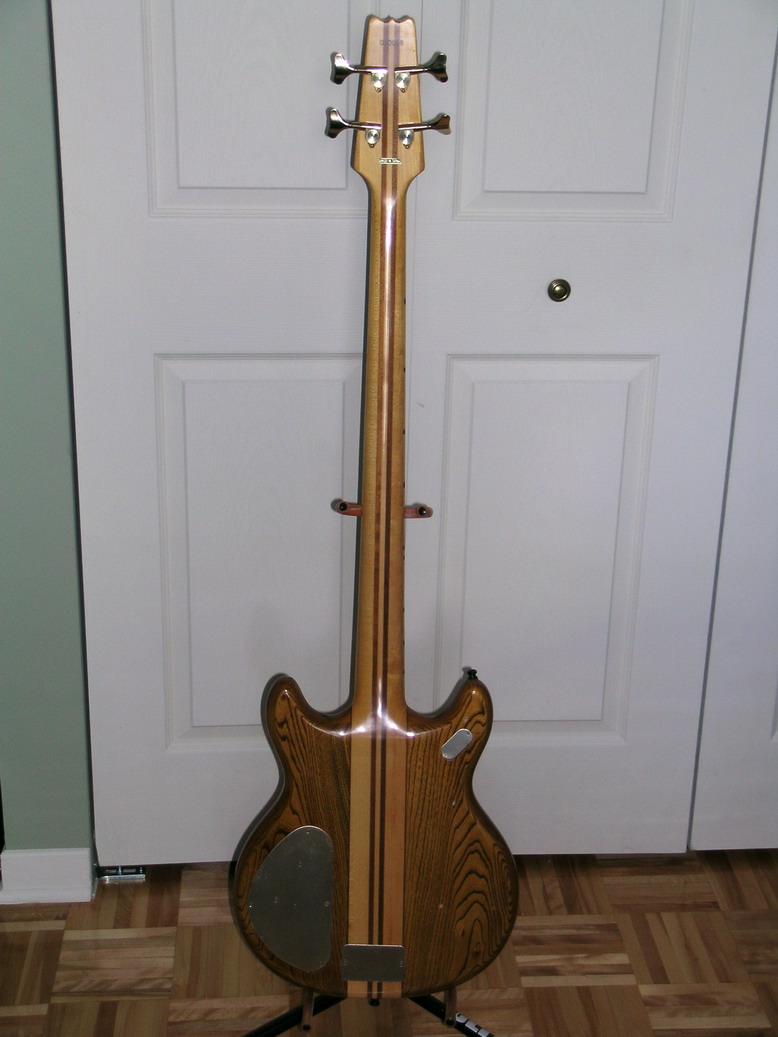

Picture below courtesy Frenchy
:

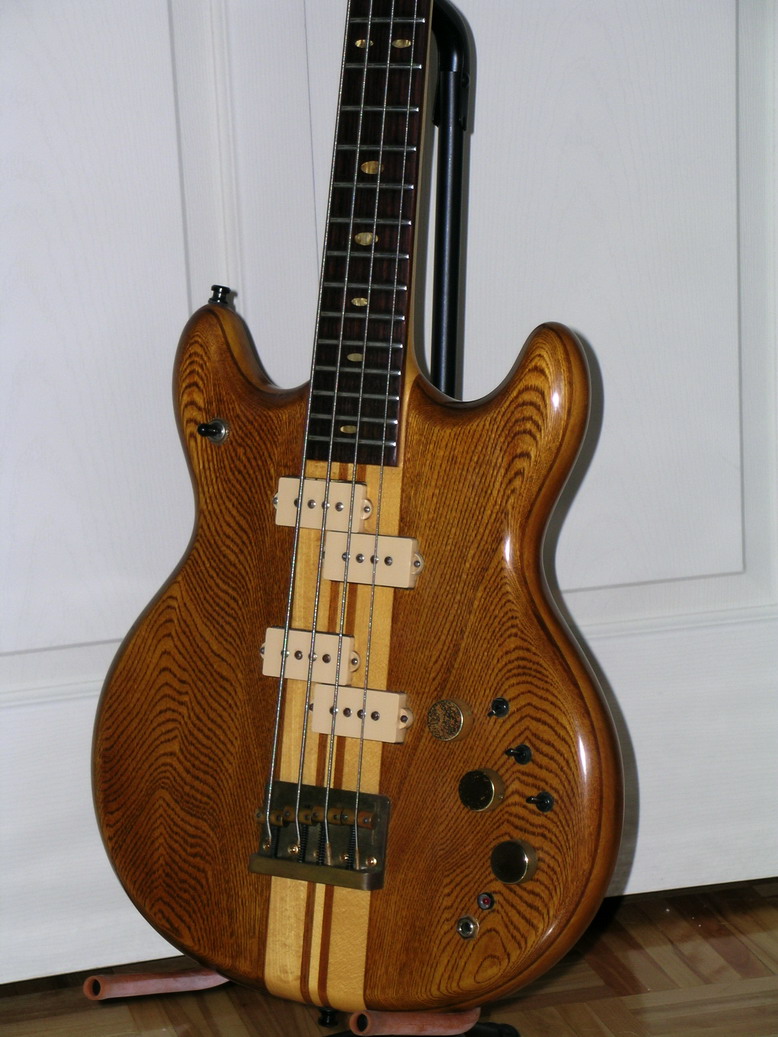

Picture below courtesy Frenchy
:
Picture below courtesy Frenchy
:
Picture below courtesy Frenchy
:
Picture below courtesy Frenchy
:

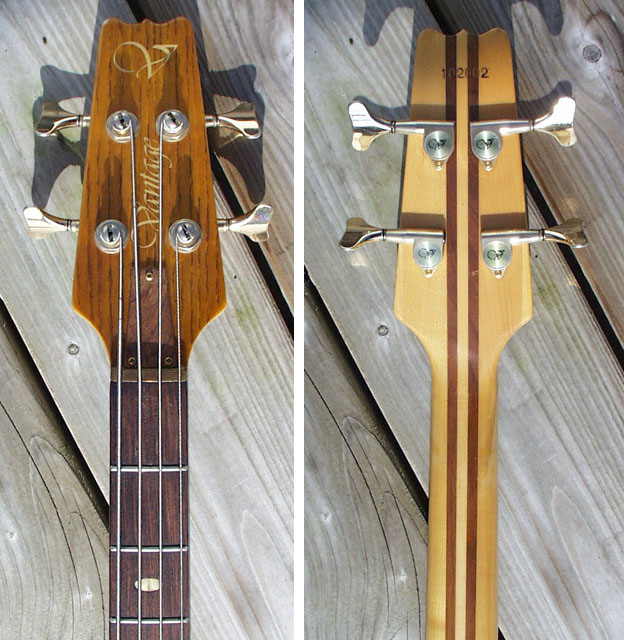

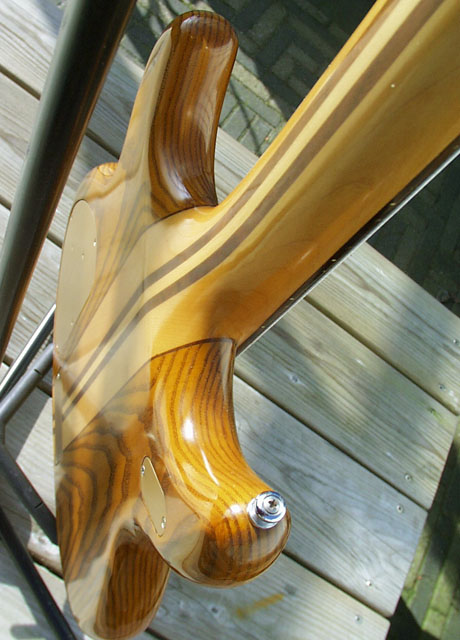

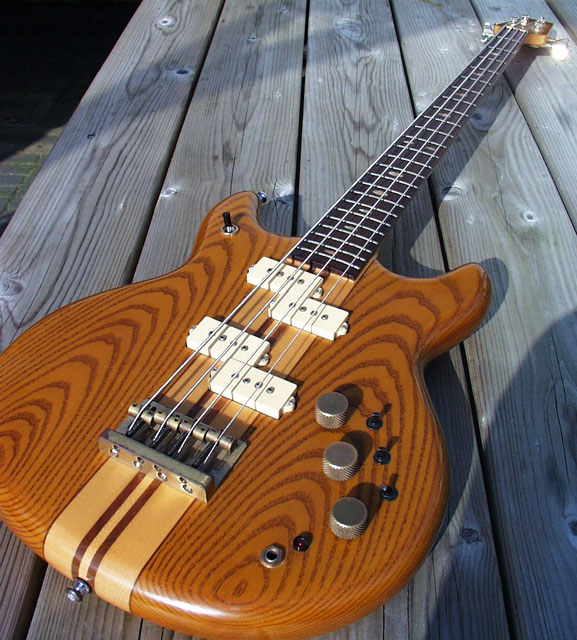

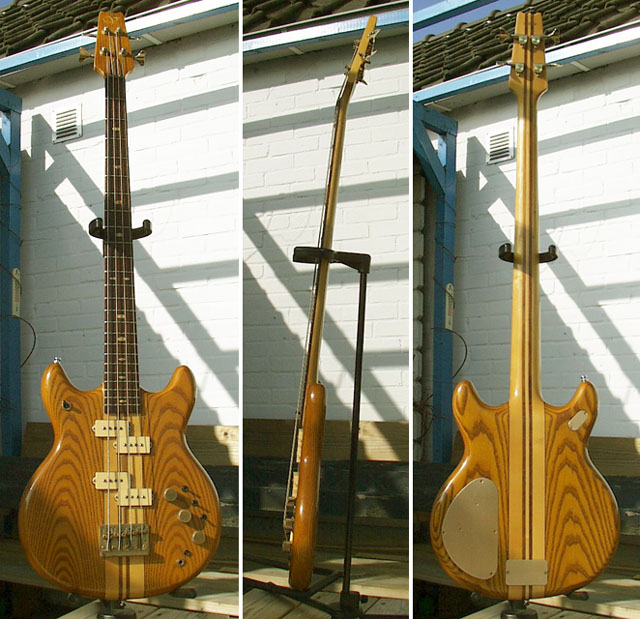

Picture below courtesy Dutch K9
:
Picture below courtesy Dutch K9
:
Picture below courtesy Dutch K9
:
Picture below courtesy Dutch K9
:
